Max speed: 3500 spm
Feed type: Drop and needle feed
Stitch length: 5.5 mm
Needle size: 120-140 Nm
Hook type: 21 mm
Needle bar stroke: 35 mm
Stitch type: 301
Lockstitich Foot lift: Option

Product Description

Max speed: 5000rpm
Feed type: bottom feed
Stitch length: 0-5
Needle size: 70-110 Nm
Hook type: small hook
Needle bar stroke: 31 mm
Stitchtype: 301
Foot lift: 6/13 mm

Features

Direct-Drive
Automatic closed lubrication system
Eletronic controlled stitch length
Electronic controlled presser foot pressure
Motor control unit integrated in machine belt cover
Push button on machine head for half-stitch and lock funtion
USB port for upload and download of sewing programs, aswell as software updates

Sensor for the measurement of the material thickness with dynamic adjustment of the stitch length and the presser foot pressure for a guaranteed consistent stitch length at varying material thickness.

Integrated, dimmable sewing light
Thread nipper for a clean seam start
Reduction of energy consumption

DIRECT DRIVE SINGLE NEEDLE LOCKSTITCH SEWING MACHINE GC6158MD
COMPLETE SET WITH TABLE & STAND

6158MD SEWING MACHINE COMPLETE SET WITH TABLE & STAND WITH WHEELS

THIS IS NOT AUTO TRIMMING/AUTO CUT SEWING MACHINE

TO SEW LIGHT AND MEDIUM WEIGHT MATERIALS
SUCH AS T-SHIRT, BLOUSE, SUIT, SKIRT, TROUSERS, CURTAIN, JEANS, ETC

CLUTCH MOTOR IS NOT ATTACHED TO THE MACHINE TABLE
DIRECT DRIVE IS DIRECTLY COUPLED WITH THE MAIN SHAFT OF SEWING MACHINE

MACHINE SPEED IS ADJUSTABLE

CLEARANCE UNDER THE ARM: 25CMx13CM(H)

AUTOMATIC OIL PUMP LUBRICATION SYSTEM

THIS MACHINE PRODUCES A TOP QUALITY STITCH WITH LOWER NOISE AND SHAKY EVEN SEW AT A FASTER SPEED

MAX. SEWING SPEED: 3700 RPM

MAX STITCH LENGTH :5MM

MAX. PRESSER FOOT LIFT: 13MM WITH KNEE LIFTER

ACCESSORIES INCLUDE:

MACHINE OIL (kindly fill into oil reservoir once received)
BOBBINS
1 PACK NEEDLE
SCREW DRIVERS
USER MANUAL
ZIPPER FOOT
DUST COVER MACHINE HEAD

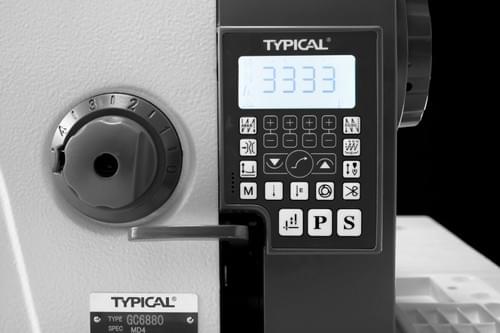

• GC6880 Direct Drive Integrated Lockstitch With Trimmer by mini servo motor shaft.fast reaction.low noise.low noise,low vibration and consumption
• With thread napper.increased 120% take-up volume of surface thread.well improved bird nest stitch
• Panel.control box and machine head integrated,easy for installation and operation cou Id let user be comfortable
• Auto foot lifter system be used widely 1st user easy control
• Upper designed bobbin winder
• Widely use for suits,jeans,shirt,wuiform,lady weay,sports cloth etc

Drop and needle feed
Modern Direct-Drive on all MD3 and HD3 machines for low noise and low vibrations
GC9750 Large hook for higher bobbin capacity (Jeans, Workwear, etc.)
GC9450 Small hook for smooth seams on thin material (shirt, blouses, etc.)
Adjustable thread guides to optimize seam quality
Hook fine adjustment for easier needle distance settings
Fully automatic lubrication system
Split needle bar for corner sewing


STANDARD EQUIPMENT ON ALL MD3 AND HD3 MACHINES:
Automatic thread trimmer, thread wiper, back tack & automatic presser foot lift (option)
